Product Details
＋

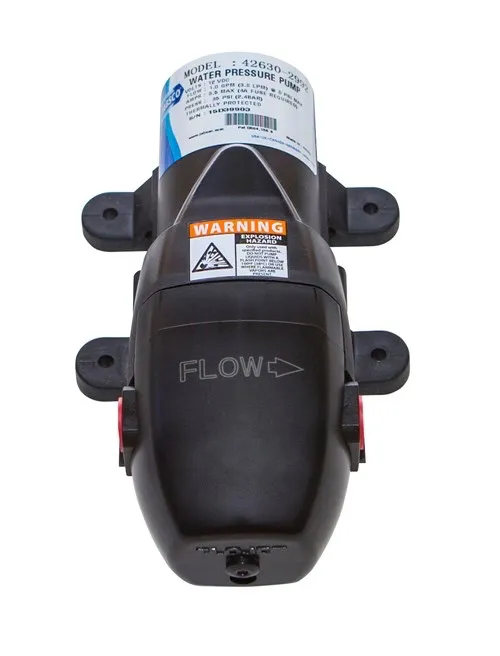

Flow rate: 3.8 Litres/min (0.84 gallons/min)
Self-priming from dry up to 1.8m (6ft)
Demand (pressure switch shut-off) Sealed motor and pressure switch, providing years of dependable reliability Jabsco Diaphragm pumps provide dependable run dry capabilities, extending the life of the pump Built in thermal protector, prevents overheating to protect the pump from damage Quick Disconnect Ports allow for quick cleaning and easy hose replacement in seconds Low amp draw, ideal for battery powered applications Optional faucet with tubing and fittings model to completethe water delivery system on your vessel
This NEW Jabsco design with an IP (Ingress Protection) rated cover and quick fit ports improves the installation process and follows 50 years of innovative Jabsco design. With on demand (pressure switch shut-off) and made from a robust material selection, suitable for handling a broad range of applications these low flow pumps meet the markets variable demands. Jabsco Diaphragm pumps provide dependable run dry capabilities, extending the life of the pump.
Ports: 3/8" hose barb, 3/8" x 1/2" Adapter or John Guest 1/4", 3/8" NPT male to John Guest 1/4" and faucet.
Pressure Switch Setting: 35 PSI (2.4 bar)
Voltage: 12V DC
Amp Draw: 4 Amps
Fuse Size: 4 Amp
Motor Type: Permanent Magnet, Thermally Protected, Intermittent Duty
Protection Class: IPX4
Self-priming from dry up to 1.8m (6ft)
This NEW Jabsco design with an IP (Ingress Protection) rated cover and quick fit ports improves the installation process and follows 50 years of innovative Jabsco design. With on demand (pressure switch shut-off) and made from a robust material selection, suitable for handling a broad range of applications these low flow pumps meet the markets variable demands. Jabsco Diaphragm pumps provide dependable run dry capabilities, extending the life of the pump.
Ports: 3/8" hose barb, 3/8" x 1/2" Adapter or John Guest 1/4", 3/8" NPT male to John Guest 1/4" and faucet.
Pressure Switch Setting: 35 PSI (2.4 bar)
Voltage: 12V DC
Amp Draw: 4 Amps
Fuse Size: 4 Amp
Motor Type: Permanent Magnet, Thermally Protected, Intermittent Duty
Protection Class: IPX4
